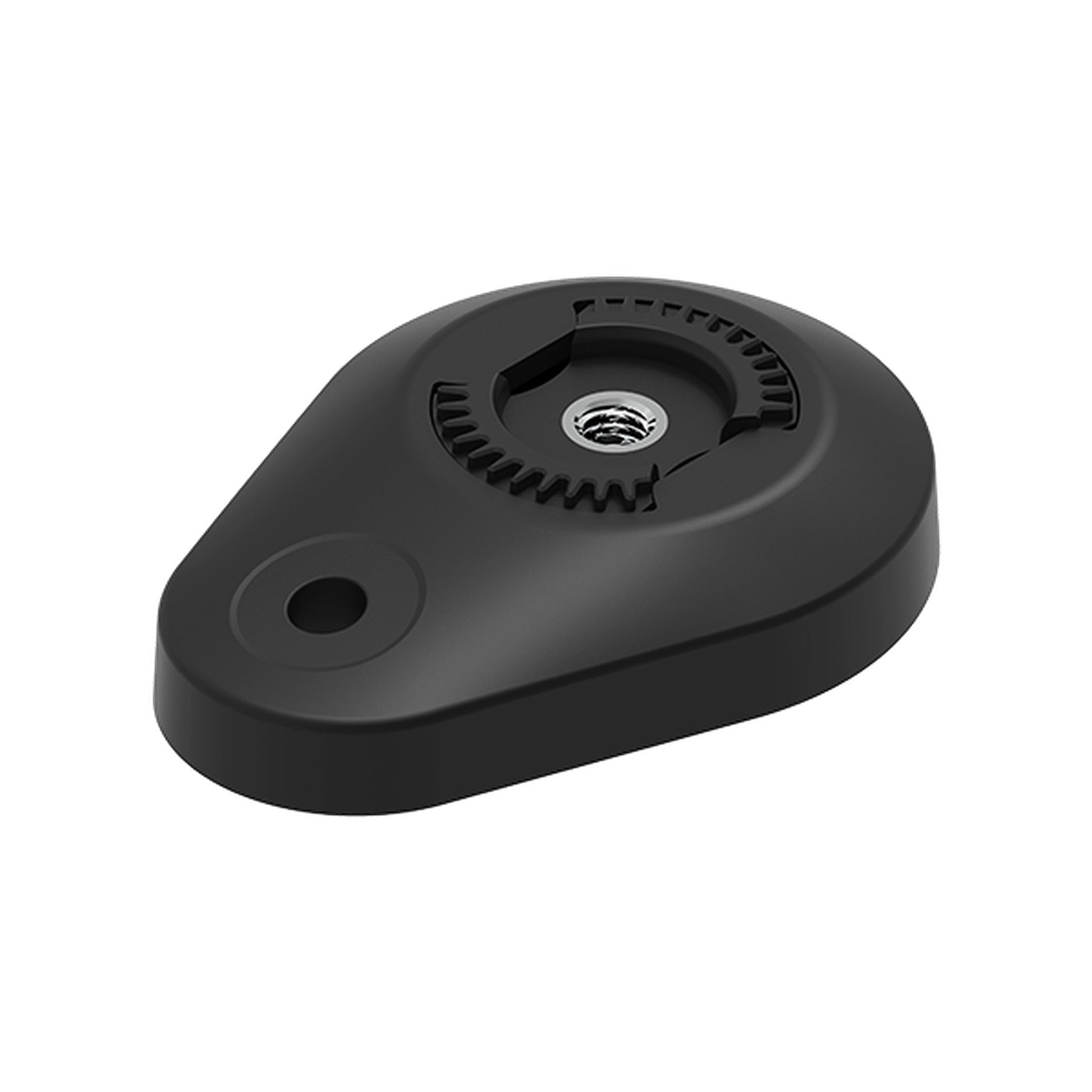

Quad Lock 360 Base - Concealed Through Cable

Features

- 2 hole base

- Glamour cover with TPU grommet to pass 12V-24V waterproof wireless charger cable

- Glamour cover to hide screws

- Low profile base



Compatible with:

- Primarily used as cable pass through for 12V-24V Waterproof Wireless Charging Head

- Flat mounting surface

- M5 or 10G (gauge 10) pan head screws

- All QUAD LOCK 360 arms and heads

- Use moto spacer, M5 x 45 screw & right angle USB-C cable for USB weatherproof wireless charger



Not compatible with:

- Curved mounting surface

- Cannot pass following cables through grommet:

- USB-A to USB-C CABLES (QUAD LOCK / GENERIC)

- USB-C to USB-C CABLES (QUAD LOCK / GENERIC)

- SAE connector cables (QUAD LOCK / GENERIC)

- Moto USB charger & 12V smart adaptor cables

Included in the box:

1 x QUAD LOCK concealed through cable small base with cover

1 x QUAD LOCK 10mm SPACER

1 x M5 x 30 countersunk hex socket screw (for connecting Spacer to Lever Head or 360 Arms)

1 x M5 x 45 countersunk hex socket screw (for connecting Spacer to Weatherproof Wireless Charger)

*Mounting screws not included



Materials: Glass filled nylon, 316 stainless steel hardware

Measurements: 55mm L x 40mm W x 12mm H
